KNX Smart Home System KNX Touch Panel Wall Touch Smart Light Switch Smart Home System Full Automatic Smart Panel

$326.00

SKU: 1601439737406 Category: Uncategorized

AC Outlets Quantity : 1 Outlets
Max. Current : 10 A
Max. Voltage : 250 V
USB A Output Ports : 0
USB Type-C Ports : 0
Model Number : S8KE
Brand Name : neutral
Place of Origin : Guangdong, China
App : ETS
Feature : Durable, Touch Panel, Easy Installation, Stepless 1.22-inch rotable knob assures accurate positioning
IP Level : IP50
Material : ABS, Aluminum
Mechanical Life : 10 Years
Network : SDK, Zigbee, Wires, Ethernet, Bluetooth, Wi-Fi, 2.4 GHz, KNX
Style : Modern, Luxury, Industrial, Contemporary, Minimalist
WIFI : Yes
Product name : KNX Smart Control Panel
Panel Material : PC
Temperature & humidity sensor : Built-in
Application : ETS

Product Description

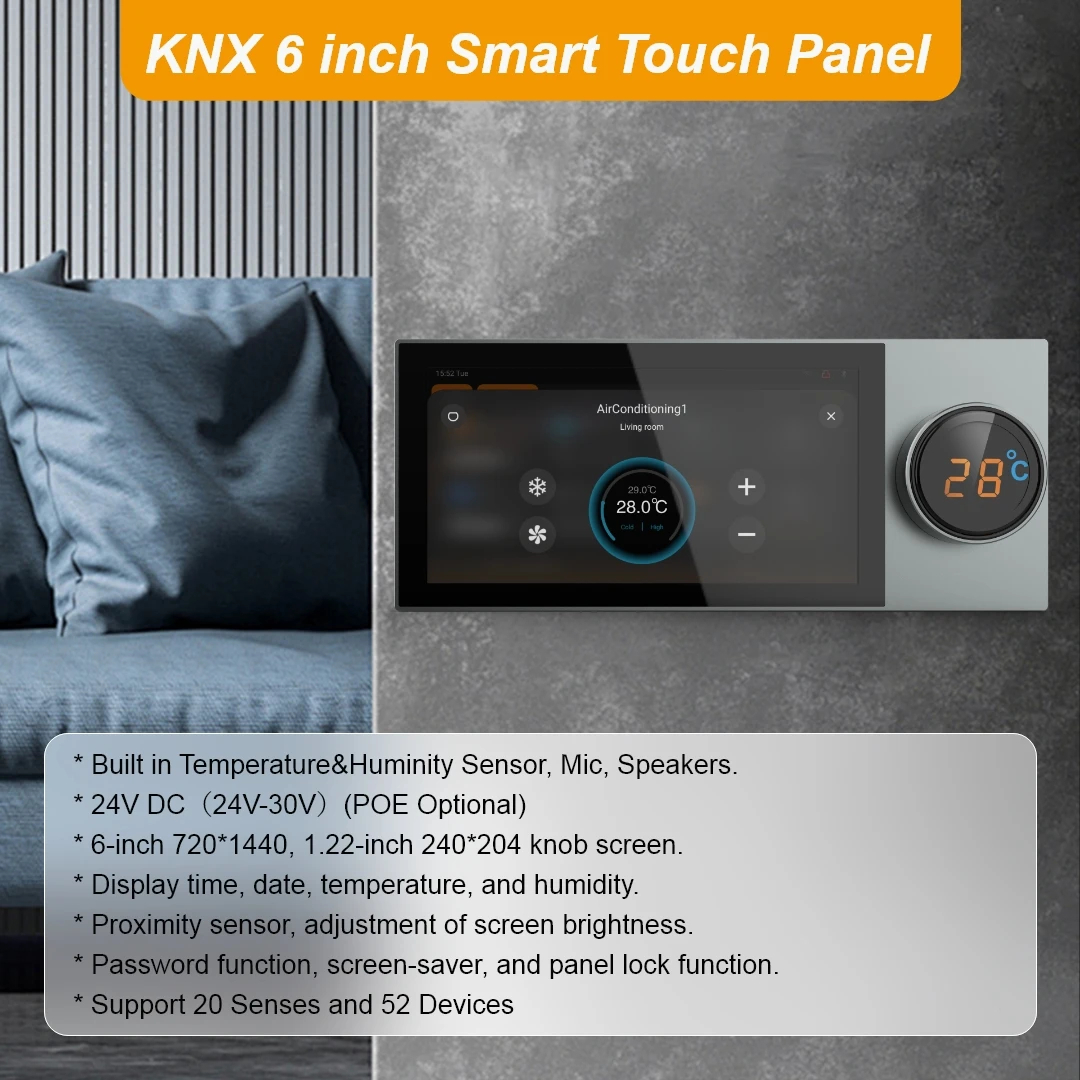

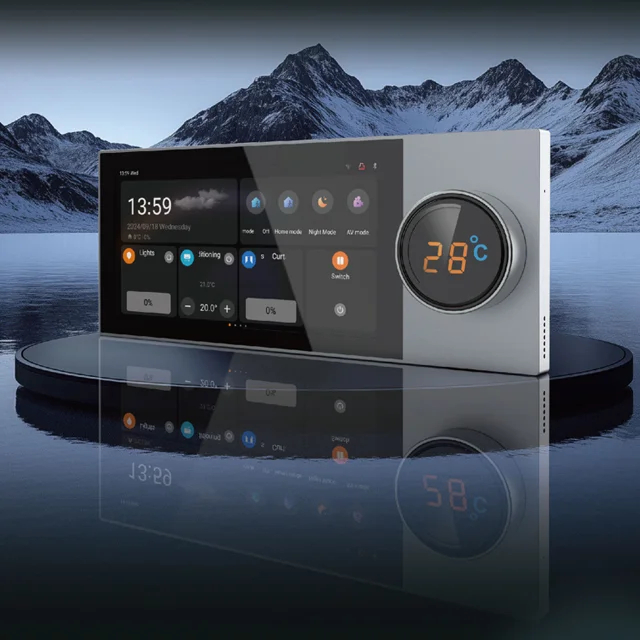

S8KE is a 6-inch KNX smart control panel solutions from SMATEK building automation solutions.

Users can configure smart devices or scenes control from ETS, one tap to whole home automation.

With clear and intuitive icons and control feedback, you can easily understand the status of your appliances at a glance. Its innovative knob design and selection of classy colors further enhance its appeal, making it a true standout in touch screens. The 1.22 inch knob screen can control AC/ Thermostats temperature+/-, lights brightness percentage etc.

Here’s how we explain clearly about Smatek smart control panel by Q&A, it should solve the doubts you may concern.

Q1: What is smart control panel?

A: It is a visualized gateway to connect all IoT devices at your home, users would control via APP in mobile
remotely or directly via the smart control panel. It is integrated with WiFi/Zigbee/Bluetooth, no more additional hub required.

Q2: What’s the smart control panel structure? What can we do on hardware?

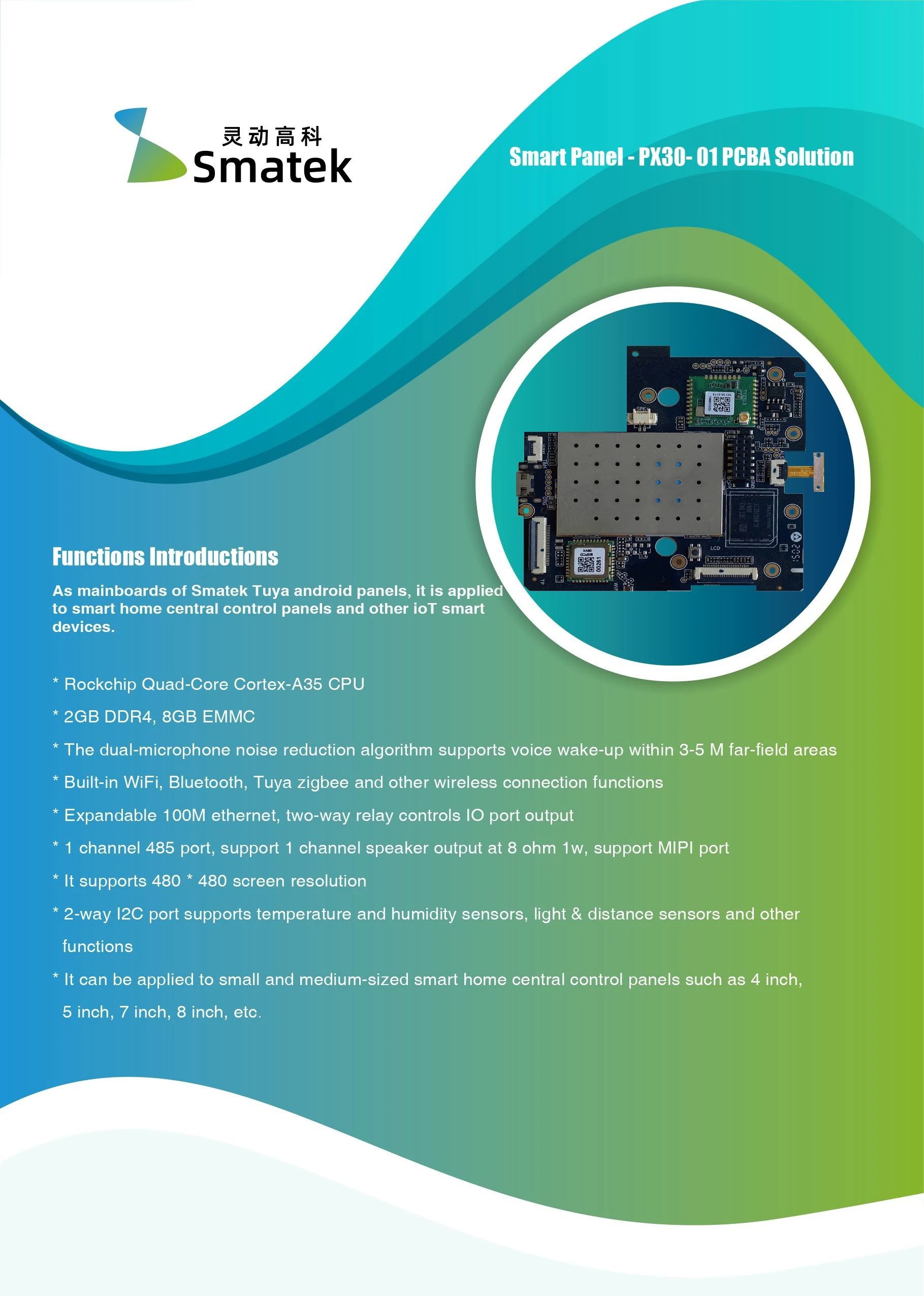

A: The structure is Touchscreen Display+Android/Linux embedded board+Power adapter board+Tooled frame.

Q3: What APP can the smart control panel run? What can we do on software?

A: We develop our own APP Android or Linux OS of smart control panel based on Tuya public SDK. Our standard control panel works with Tuya PaaS SaaS, which stands out for its extensive device compatibility, ensuring seamless integration with a vast range of smart devices. And the app used to control on the phone is Tuya’s standard APP. Tuya Smart is the global IoT development platform service provider.

Q4: Can we install customer’s APP in your smart control panel and work on their own Platform Cloud?

A: Yes! We can support other PaaS/Platform, debug customer’s APP running smoothly in our Smart Panel; Support our Smart Panel communicating with customer’s IoT devices via Zigbee, Wifi or Bluetooth.

Specification

Scenes and Devices Control KNX Display Touch Panel
CPU	Rockchip PX30 Quad core Cortex-A35	OS	Android 11
RAM	2G，LPDDR4	ROM	8G，eMMC
Main Screen	6-inch, 720 * 1440	Knob screen	1.22-inch, 240*204
Wired network	100M network, RJ45 PoE power supply optional	Wireless network	2.4G，802.11a/b/g/n
Microphone	Four-microphone line array	Speaker	8 ohm 1W*2
Buttons	Knob, Reset button	Interface	Micro USB

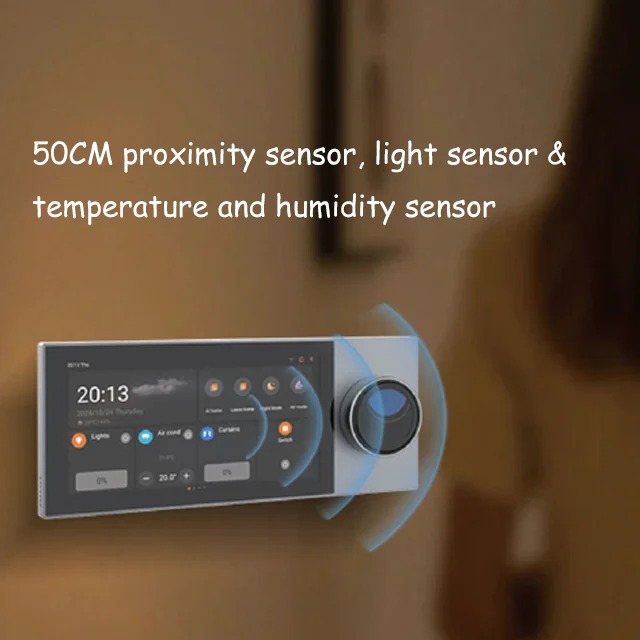

Sensors	50CM proximity sensor, Light sensor, Temperature and humidity sensor

Product Paramenters

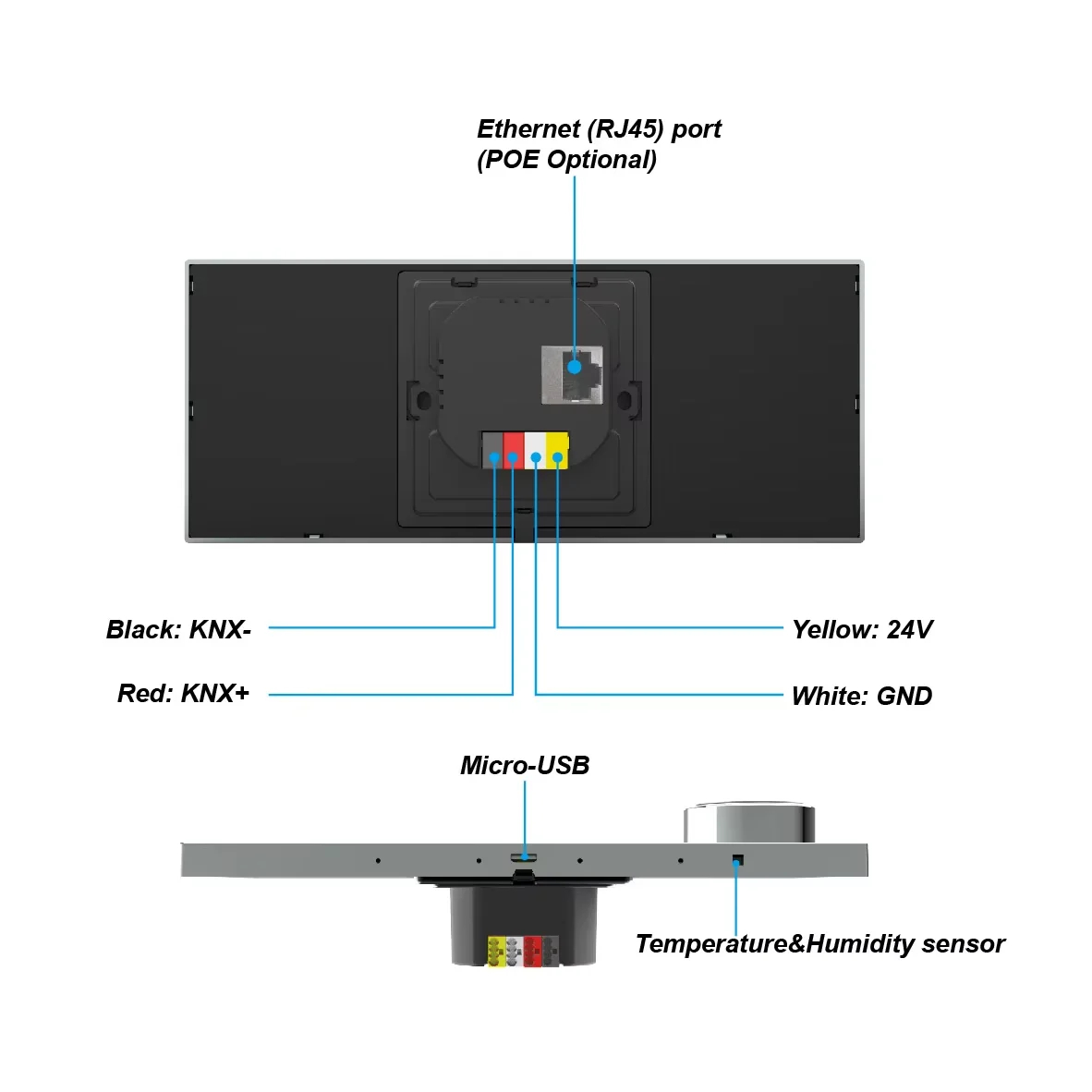

Input voltage	24V DC21V-30V	KNX Auxiliary voltage	18- 28V DC
Wired Protocol	KNX	Dimension	205.685.652mm
Working Temperature	0℃-40℃	Base Dimension	67.671.629mm
Working Humidity	50%-90% RH	Net Weight	293.8g
Wall box	Fits Asian/EU/UK/UAE in wall mount boxes

Product Usage

KNX/EIB Automation System is a great smart home/building system which is the only OPEN protocol system can also integrated with other systems. Door intercoms, cameras and audio systems can also be integrated into the home control. All the functions can be easily operated using a central control unit.

Trained electricians can implement almost any desired function. One major advantage of the KNX/EIB installation is that the system can be modified and expanded at any time. If new or other functions are desired, they can simply be programmed.

S8KE is an advanced, high-performance gateway for the smart management of all smart devices in the home, even remotely. It increases comfort and safety levels with customisable multifunction programmes, so that every detail of the home can be planned.

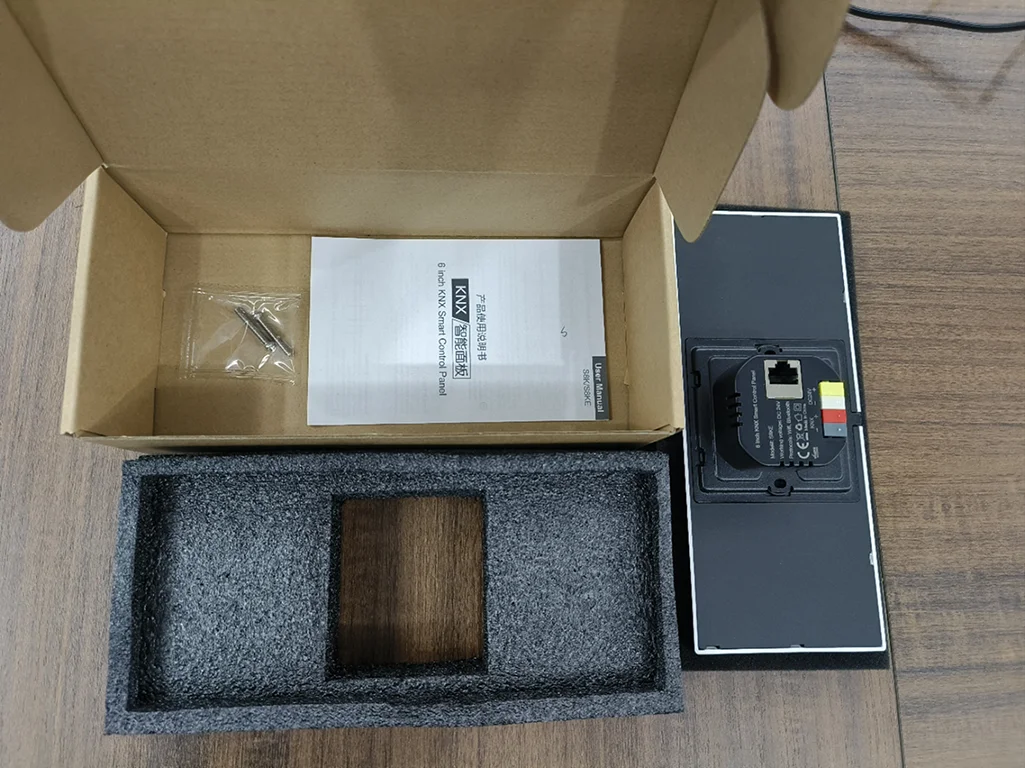

Packing & Delivery

Company Profile

Smatek Electronic Limited was founded in 2012 and is a leading provider of smart control touchscreen solutions. The company specializes in the research, development, and manufacturing of high-performance automation products for both residential and commercial applications.With a strong commitment to innovation, Smatek offers a range of intelligent control panels, home automation systems, and IoT solutions that integrate seamlessly with KNX, Zigbee, RS485, and Ethernet protocols. These products are designed to enhance efficiency, security, and convenience across various industries.The company operates a state-of-the-art manufacturing facility, ensuring high-quality production standards and rigorous testing processes. Its expertise in embedded systems, PCB design, and smart connectivity allows for customizable solutions tailored to diverse market needs. Smatek also provides OEM and ODM services, supporting global partners in bringing advanced automation technology to their businesses.As part of its international expansion, Smatek continues to refine its products for global markets, prioritizing reliability, adaptability, and ease of integration into existing smart ecosystems. For business inquiries and collaboration, Smatek welcomes partners to explore advanced automation solutions designed for the future.

Our Android/linux Smart Home Automation control panel wall-mounted touch screens can be designed to meet customer requirements. While our off-the-shelf systems support most use cases with minimal configuration, we can custom-build solutions to meet specific needs. Here are our cooperation options:

Cooperation 1: Choose existing standard products.Tuya firmware, includes the Tuya APP and user interface, KNX panelCooperation 2: Our plain Android version with only an underlying Android firmware for buyer side secondary develop APK, software, etc.Cooperation 3: Provide your APK, requirements, or moduleZigbee or other fits in our mainboard, and we will follow your requirements to make the firmware and install your modules for you, and send you othe product.Cooperation 4: To customize a new product, please provide your requirements regarding hardware parameters, underlying system, product design and appearance, detailed requirements, etc. This requires MOQ and development fee

1. Do you accept a sample order?

A: Yes, we would be delighted to provide you with samples for your evaluation. Feel free to send us an inquiry, and let’s have a chat.

2. How long does it take to deliver the sample?
A: It depends on different products; it usually takes 1-15 days.

3. How much will the customized logo cost?
A: If your quantity is up to our MOQ, it will usually be free

4: Do your panels support Zigbee?
A: Our standard models have Tuya Zigbee integrated, work on Tuya Platform and rely on the Tuya ecosystem, including Tuya’s gateways, cloud services, and applications Tuya App, Smart Life. In our model name, “NZ” means “NO Zigbee”, it features an underlying Android-based firmware, support customizable firmware and SDKs to meet diverse technical needs, flexible for integration into various smart home systems.

5: What operating systems do you supply?
A: Our smart home solutions support a variety of operating systems, including Android and Linux-based systems such as Ubuntu, Debian, and Buildroot.

6: Do you have POE panels?
A: Yes, we have smart home control panels that support PoE, adhere to the IEEE802.3af standard.

7: Do you have panels that support KNX?

1.KNX Integration: We are a member of the KNX association and have authorization to include the KNX protocol in our KNX models. Smatek’s KNX modules, integrated with different screen sizes, allow home and building automation integrators to natively connect KNX-based systems, providing centralized control over all connected devices for a streamlined automation experience.

2. Custom Integration: We can integrate your KNX modules into our mainboards. We provide a neutral Android OS, and you handle the KNX firmware, allowing you to create a custom model tailored to your specifications.

3. KNX IP Gateway Solution: You can use a KNX IP gateway to bridge your KNX devices with our panel. This enables remote control through third-party applications that support KNX communication.
4. Software Configuration: Our KNX-compatible products are configured using ETS software, the industry-standard tool for KNX automation setups. While we do not provide a dedicated app for KNX control, customers can integrate third-party KNX applications or use a KNX IP gateway for mobile access.
